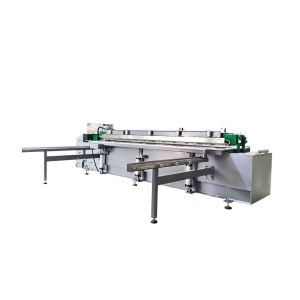

Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

Name: Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling
Brand: MM-TECH
Price: 20 USD

China Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling wholesale

Brand Name : MM-TECH

Model Number : SWT-PZ4000

Certification : CE

Place of Origin : HEBEI,CHINA

MOQ : 1

Price : USD 20,000 - USD 24,000 / SET

Payment Terms : Western Union, T/T, PayPal

Supply Ability : 600 SETS / MONTH

Delivery Time : within 7 days

Packaging Details : Plywood Case

Model : SWT-PZ4000

Roll circle diameter min : 500

Rated current : 80A

Bending heating power : 12kW

Welding heating power : 8kW

N.W : 1600KG

G.W : 1700KG

Brand : MM-TECH

Weldable sheet Thickness : 3 - 25mm

Max working length : 4000mm

Bending angle : 0 - 100°

Rated voltage : 380V, 50/60Hz

Air pressure(kg.f/cm²) : 6.0-8.0

Drum institutions motor power : 1.5kW

External dimensions : 5000*1100*1200mm

Packing dimensions : 5100*1250*1370mm

Contact Now

Multi-Function HDPE Sheet Bending Machine Intergrated 90° Rolling Butt Fusion Welding

Sheet Bending Machine Features

Working length up to 4000mm
Weldable sheet thickness from 3mm to 25mm
Suitable for thermoplastic material like PE PP PVC PVDF
Multi-Function include Bending, 90°, Rolling, Butt Fusion Welding

Sheet Bending Machine Data Reference

Model	SWT-PZ4000
Weldable sheet thickness	3 - 25mm
Max working length	4000mm
Bending angle	0 - 100°
Roll circle diameter min	500
Air pressure(kg.f/cm²)	6.0 - 8.0
Rated voltage	380V, 50/60Hz
Rated current	80A
Bending heating power	12kW
Welding heating power	8kW
Drum institutions motor power	1.5kW
External dimensions	500011001200mm
Packing dimensions	510012501370mm
N.W	1600KG
G.W	1700KG

Finished products by Multi-Function Sheet Welding Machine

Multifunction HDPE Plastic Sheet Bending Machine Integrated 90 Degree Rolling

Supreme Service

Machine Quality Guarantee: 24 months. If any parts broken or doesn't work under normal operating, we are free to offer.
